The Qfarm.Cloud service allows remote control of the Qfarm processors installed in your Farm from any device such as computers, smartphones or tablets, connected to the internet.

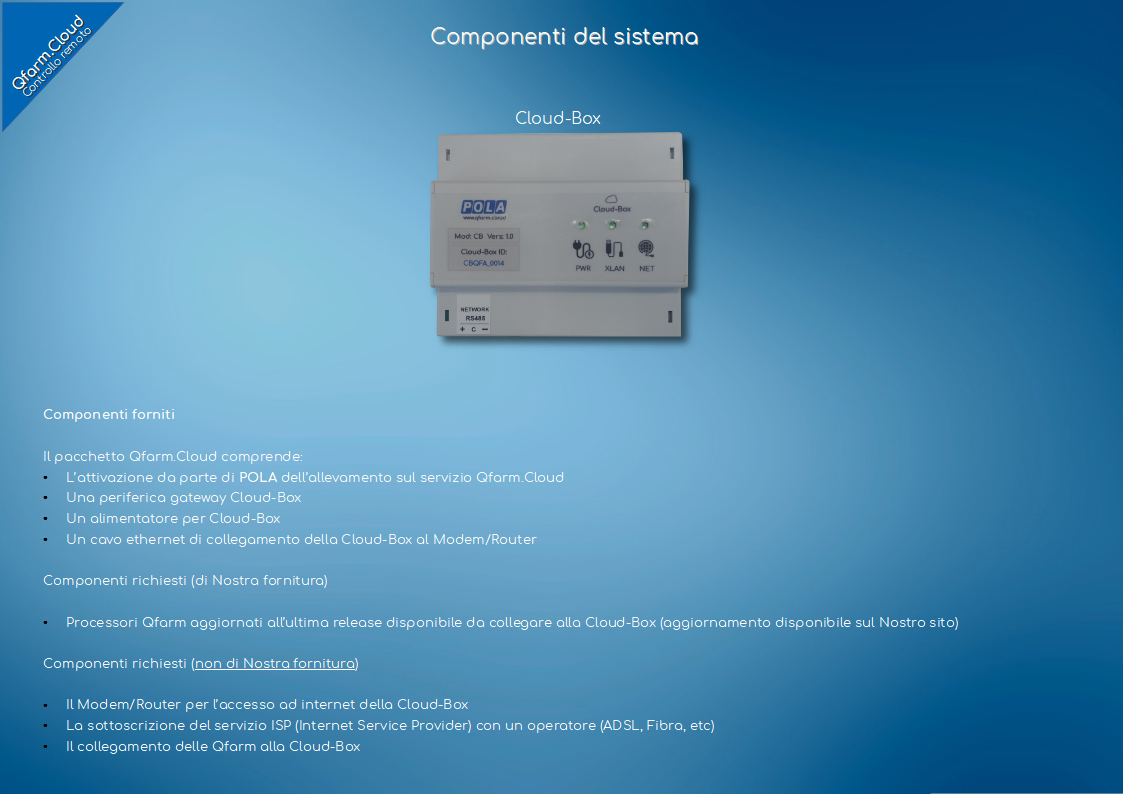

The system requires our Cloud-Box gateway to be installed in the farm: Qfarms must be connected to it, in order to be controlled. The connection between Cloud-Box and Qfarm consists of a standard 3-wire cable, where an RS485 communication is established, and it can be extended up to 1000 meters. It does not require terminations, thus making the wiring of the system extremely simple. In applications where a cable cannot be used, the solution is to install our TR04 radio-modem operating on a maximum distance of 400 meters.
In addition to the Qfarm connection, the Cloud-Box requires a connection to a modem/router via an ethernet cable, in order to exchange data with the cloud-server.

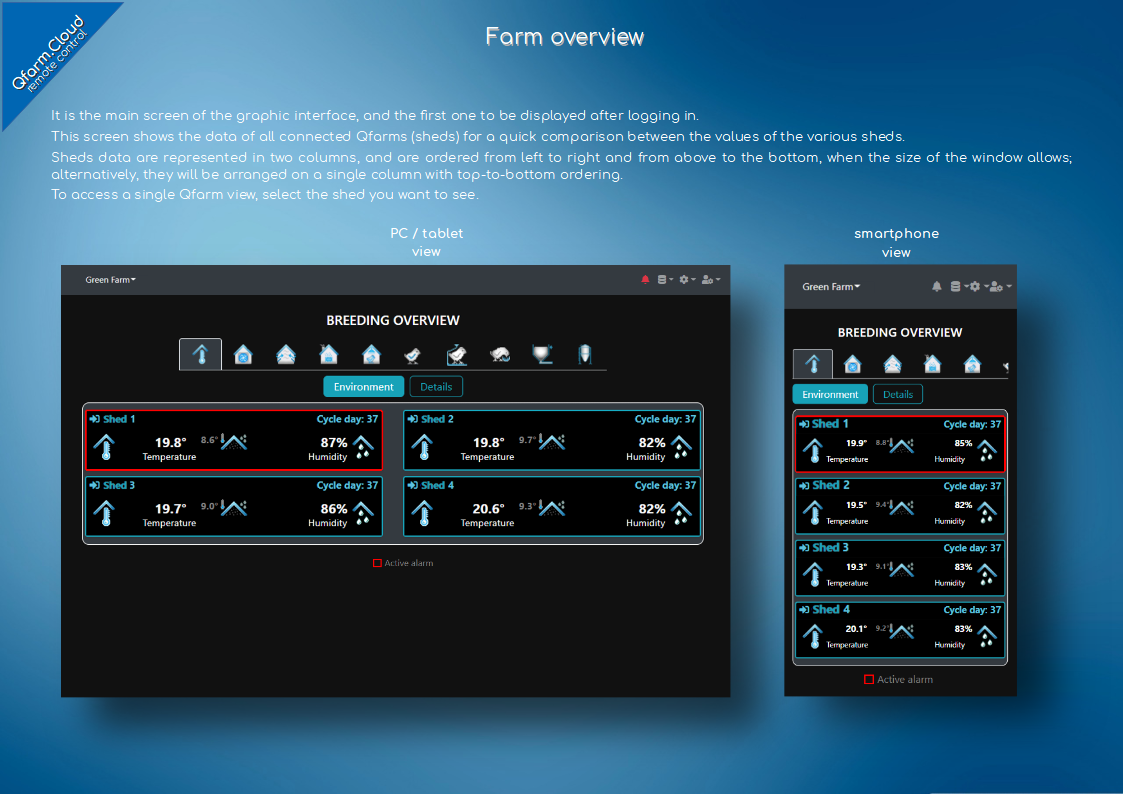

Once the Cloud-Box has been connected and configured, a connection will be established with our cloud-server. From now on it will be possible to view the Qfarms with the Qfarm.Cloud service, reachable by any device connected to the internet via:
In addition to the Qfarm connection, the Cloud-Box requires a connection to a modem/router via an ethernet cable, in order to exchange data with the cloud-server.
Once the Cloud-Box has been connected and configured, a connection will be established with our cloud-server. From now on it will be possible to view the Qfarms with the Qfarm.Cloud service, reachable by any device connected to the internet via:
● Browser web: from this link: (Qfarm.Cloud)
● Smartphone progressive web app: self-installing for Android and iOS
● Smartphone progressive web app: self-installing for Android and iOS
Download brochure PDF
